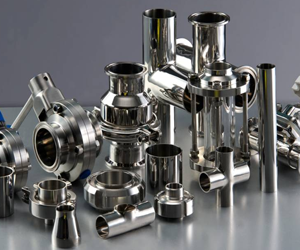

INVESTMENT CAST FITTINGS

Material Grades: AISI 202, 201, 304, 316, 304L, 316L – CF8, CF8M

Sizes: 1/8",1/4",3/8",1/2",3/4",1",1-1/4",1-1/2",2",2-1/2",3",4"

Standards: ASTM A-351, ANSI B16.3, Threads to ANSI B2.1

Thread Type: NPT,BSPT,BSP

Pressure Rating: ANSI CLASS 150

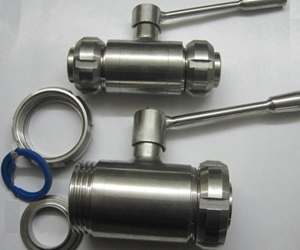

BSP Ball Valve.

Material: 316 (CF8M) stainless steel.

Sizes :1/4″ to 2″.

Working Pressure : 1000psi (69bar) W.O.G. Max.

Standard :BSP according to EN 10226-1, ISO 7-1.

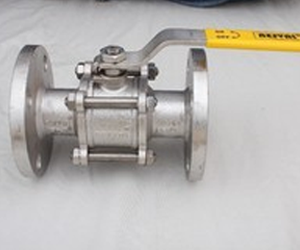

Flanges & Ball Valve

Temperature Rating: 45.5 'C (-50°F) to 246'C (475'F)

Sizes :1/2" - 8" (inches)

Dimensions: ANSI B16.5

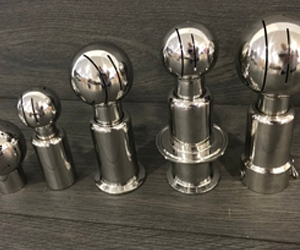

Spray Ball Threaded

Ball Diameter: 40mm

Working Pressure : 1-2 bar

Cleaning Radius: 0.5-1.5M

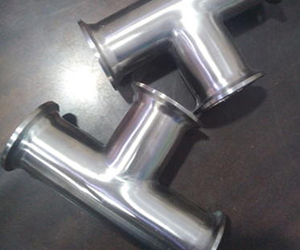

SMS Tee

Material: SUS304, SUS316L, , AISI304, AISI316L

Standard : DIN, ISO, IDF, 3A, BS, SMS

Polish: Mirror polishing, stain finishing

Connection: Weld/clamp/thread/union etc.
