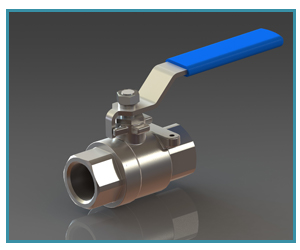

Ball Valve

Pipe Size : 3/4 in
Connection Type : FNPT x FNPT
Max. Pressure : 2,000 psi CWP
Handle Type : Locking Lever
Standards : ASME B16.34, CF8M
Overall Length : 3.11 in
Valve Basic Body Material : Stainless Steel

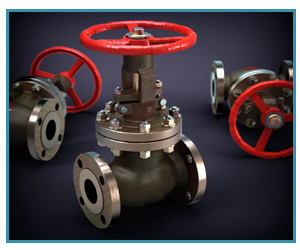

Globe Valve

Size : 1/2" to 2" BSP
Body : 316 Stainless Steel
Nominal Pressure :13 BAR
Handle Type : Locking Lever
Max Temp : 180°C
Overall Length : 3.11 in
Threaded end : NPT spec ANSI B2.1

Needel Valve

Size : 1/4" to 1" (Female / Female BSP and BSPT), 3/8" to 1" (Female / Female NPT) and 1/4" to 1/2" (Male / Female BSPP).
Temperature range: -20°C to 230°C.
Operator :Bar, hand operated.
Handle Type : Locking Lever
Pressure rating: 6000 PSI.

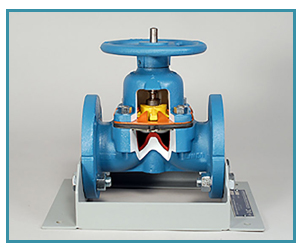

Diaphragm Valve

Connection : Clamp; Flange; Spigot; Threaded connection
Actuator: Pneumatic
Body material: 1.4408, investment casting material; 1.4408, investment casting material, PFA lined; 1.4435 (316L), forged material; 1.4435 (BN2), forged material; 1.4435, investment casting material; 1.4539 (904L), forged material; EN-GJL-250; EN-GJS-400-18-LT; EN-GJS-400-18-LT (GGG 40.3), PFA lined; EN-GJS-400-18-LT (GGG 40.3), PP lined; EN-GJS-400-18-LT, SG iron material; EN-GJS-400-18-LT, SG iron material, PFA lined; EN-GJS-400-18-LT, SG iron material, PP lined; EN-GJS-400-18-LT, SG iron material with hard rubber lining; EN-GJS-400-18-LT, hard rubber lined
Conformities: EAC; FDA; Oxygen; TA Luft (German Clean Air Act)
Max. operating pressure: 10 bar
Min. media temperature: -10 ° C
Max. media temperature: 80 ° C
Nominal sizes: DN 15 (1/2''); DN 20 (3/4''); DN 25 (1''); DN 32 (1 1/4''); DN 40 (1 1/2''); DN 50 (2'')

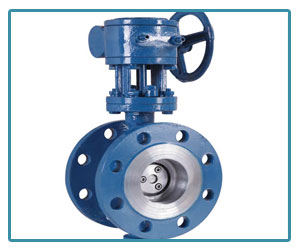

Butterfly Valve

Type : Pinless double shaft design.
Pressure : PN 16
Temperature : up to 90 Deg. Celsius.
End connection: Wafer type suitable for flanges of IS,ASIN,BS, DIN Standards.
Size (mm) : 40 to 150 mm (Lever Operated) 100 to 200 mm (Gear Operated)
Face to face : ISO 5752 / IS-13095 / BS-5155
